I-7015P: 6-channel RTD Input Data Acquisition Module with 3-wire RTD lead resistance elimination communicable over RS-485

I-7015P

E-mail this Product

Product Reference & Support :

User's Manual

Hardware

DCON Utility User's Manual

Certifications

Development software & drivers

6-channel RTD Input Data Acquisition Module with 3-wire RTD lead resistance elimination communicable over RS-485

Product Pricing:

I-7015P: $489.00

Please Call 1-888-971-9888 for Volume and OEM discount pricing!

Features

I-7015P is our newly-launched product of our I-7000 modules. It is designed for temperature measurement plus wide connection with 6 input channels. In order to reduce the signal collapse, we develops auto-compensation to double the delivering distance. Moreover, I-7015P supports several kinds of RTD, has passed 4000V ESD protection and fits in with all kinds of rough industrial environment.

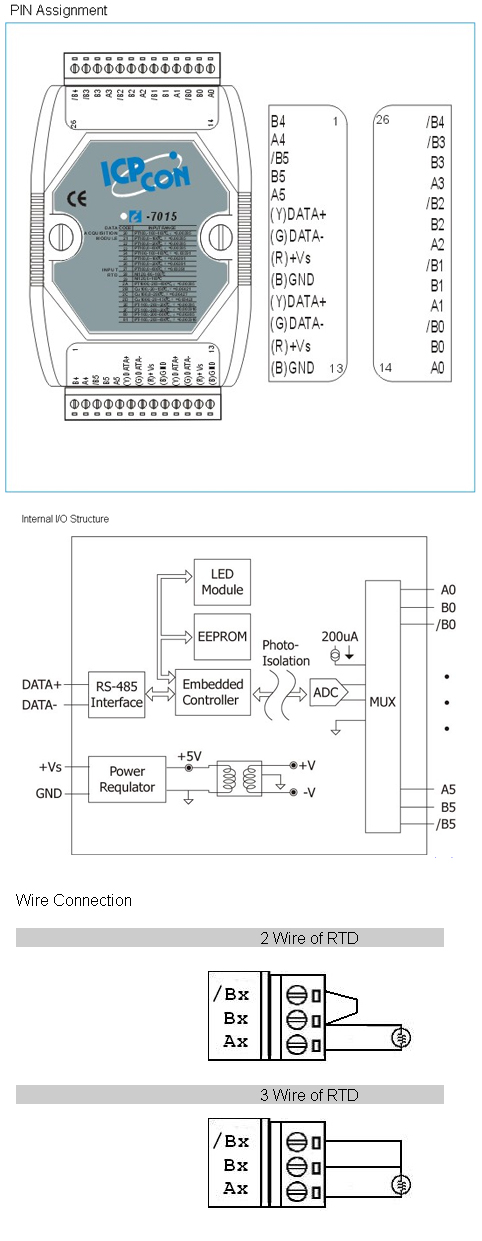

Specifications & Additional Information

Analog Input
Input Channels	6
Input Type	RTD
Wire connection	2/3 wire
RTD Type	Pt100, Pt1000, Ni120, Cu100, Cu1000
Resolution	16-bit
Sampling Rate	12 samples/ second (Total)
Accuracy	+/-0.05%
-3dB BandWidth	15.7Hz
Zero drift	+/-0.5μV/°C
Span drift	+/-20μV/°C
Common Mode Rejection	150 dB
Normal Mode Rejection	100 dB
Voltage Input Impedance	>1M Ohms
Open Wire Detection	Yes
Individual Channel Configurable	Yes
3-wire RTD lead resistance elimination	Yes
ESD Protection	4KV Contact for each terminal, and 8KV Air for random point
EFT Protection	4KV to Power, and 1KV to RS-485
Intra-module Isolation, Field to Logic	3000 VDC
Interface
Interface	RS-485
Format	N, 8, 1
Baud Rate	1200 ~ 115200bps
LED Display
1 LED	as Power/ Communication indicator
Power
Input	+10 to +30 Vdc
Power Consumption	1.2W
Environment
Operating temperature	-25 to 75°C
Storage temperature	-40 to 85°C
Humidity	5 to 95%, non-condensing

Type Code	RTD Type	Temperature Range °C
20	Platinum 100, α= 0.00385	-100 ~ 100
21	Platinum 100, α= 0.00385	0 ~ 100
22	Platinum 100, α= 0.00385	0 ~ 200
23	Platinum 100, α= 0.00385	0 ~ 600
24	Platinum 100, α= 0.003916	-100 ~ 100
25	Platinum 100, α= 0.003916	0 ~ 100
26	Platinum 100, α= 0.003916	0 ~ 200
27	Platinum 100, α= 0.003916	0 ~ 600
28	Nickel 120	-80 ~ 100
29	Nickel 120	0 ~ 100
2A	Platinum 1000, α= 0.00385	-200 ~ 600
2B	Cu 100 at 0°C,α= 0.00421	-20 ~ 150
2C	Cu 100 at 25°C,α= 0.00427	0 ~ 200
2D	Cu 1000 at 0°C,α= 0.00421	-20 ~ 150
2E	Platinum 100, α= 0.00385	-200 ~ 200
2F	Platinum 100, α= 0.003916	-200 ~ 200
80	Platinum 100, α= 0.00385	-200 ~ 600
81	Platinum 100, α= 0.003916	-200 ~ 600
