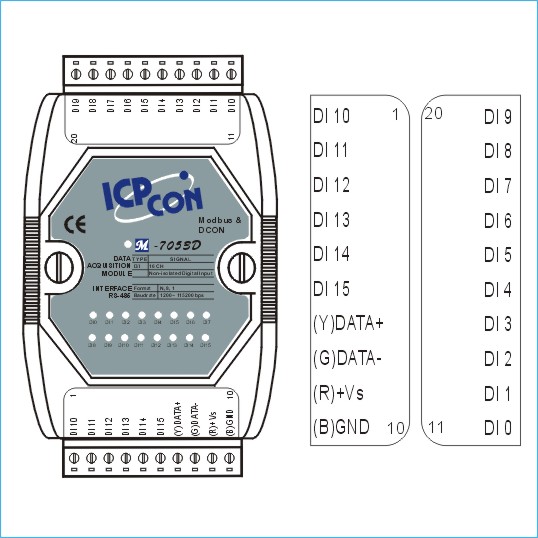

M-7053: 16 Channel Digital Input Data Acquisition Module, communicable over Modbus RTU and RS-485

M-7053

E-mail this Product

Product Reference & Support :

User's Manual

M-7000 Module Quick Start Guide

I/M-7000 Getting Started Manual

Hardware

I/M-7000 Dimensions

Development software & drivers

DCON Utility User's Manual

16 Channel Digital Input Data Acquisition Module, communicable over Modbus RTU and RS-485

Product Pricing:

M-7053: $159.00

Please Call 1-888-971-9888 for Volume and OEM discount pricing!

Features

The M-7000 series is a family of network data acquisition and control modules that support Modbus RTU. They can be remotely controlled using a set of commands called DCON protocol. With the Modbus RTU protocol, it can easily communicate with most popular SCADA/ HMI software and PLCs.

Communication Interface: ModBus protocol
Digital Input Channels: 16
D/I can be used as counter channels
Din Rail Mount

Specifications & Additional Information

Digital input level:
Dry contact:
- logic level 0: close to GND
- logic level 1: open
Effective distance for dry contact: 500m max.
16 Input Frequency : 100Hz
16-bit : 0 ~ 6,5535
Power Supply:
- Power consumption: 0.7W
