PROFI-5053: PROFIBUS Remote I/O Module with 24 Digital Inputs (Dry Contact) Non-Isolated

PROFI-5053

E-mail this Product

Product Reference & Support :

ROHS

PROFIBUS Remote I/O Module with 24 Digital Inputs (Dry Contact) Non-Isolated

Product Pricing:

PROFI-5053: $509.00

Please Call 1-888-971-9888 for Volume and OEM discount pricing!

Features

The PROFI-5053 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 24-channel dry contact non-isolated digital input. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.

The PROFI-5053 is one of the PROFIBUS DP series products produced by ICP DAS. It provides the PROFIBUS DP communication protocol with any DP-Masters. The PROFI-5053 provides ±4KV ESD protection contacting for all terminals (include I/O Terminals and PROFIBUS connector). By applying the PROFI-5053, users can easily establish a PROFIBUS DP network with other DP-Masters. In advance, it can be used in the application of building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc...

Support for PROFIBUS DP-V0 protocol
Detect transmission rate automatically(Max. 12Mbps)
Address 0~99 set by rotary switches
Network Isolation Protection
3000VDC isolation protection on PROFIBUS side
4KV ESD Protection (contact for any terminal)
Wide range of power input (DC 10~40VDC) and operating temperature (-25°C~+75°C)

PROFI-5053

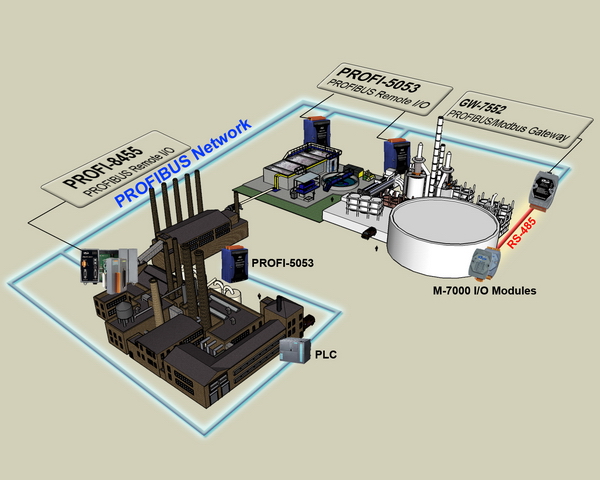

Application

Industrial Automation
Factory Automation
Process Automation
Etc…

Features

Protocol & Hierarchy	DP-V0 Slave
Supports Transmission Rate (kbps)	9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
Transmission Rate Setting	detected automatically
Address Setting	0~99 set by rotary switches
Indicators	PWR and RUN LEDs
I/O modules Configuration	Configured by GSD file
Network Isolation Protection	High Speed iCoupler
DC Isolation Protection	3000 VDC on PROFIBUS side
4KV ESD Protection	Contact for each terminal

Specifications & Additional Information

Hardware
ESD Protection	4 kV class A
PROFIBUS Interface
Controller	Profichip VPCLS2
Transceiver	ADI ADM2486
Connector	9-pin female D-Sub
Baud Rate (bps)	9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Transmission Distance (m)	Depend on baud rate (for example, max. 1200 m at 9.6 kbps )
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol	DP-V0
LED
Round LED	PWR LED, RUN LED
Power
Power supply	Unregulated +10 ~ +40 VDC
Protection	Reverse polarity protection, Over-voltage brown-out protection
Power Consumption	1 W
I/O

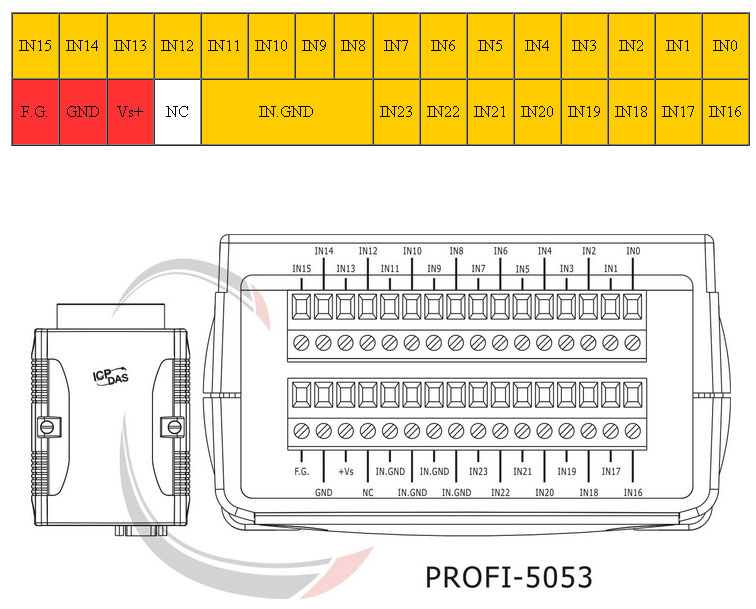

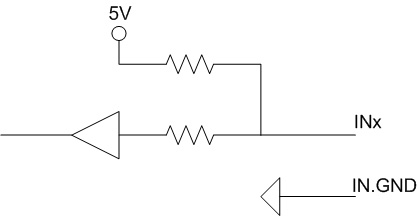

Digital Input	24 Channels (Dry Contact), Non-Isolated. Off Voltage Level: Close to IN.GND. On Voltage Level: Open
Mechanism
Installation	DIN-Rail
Dimensions	91 mm x 128 mm x 52 mm (W x L x H)
Environment
Operating Temp.	-25 ~ 75℃
Storage Temp.	-30 ~ 85℃
Humidity	5 ~ 95% RH, non-condensing
